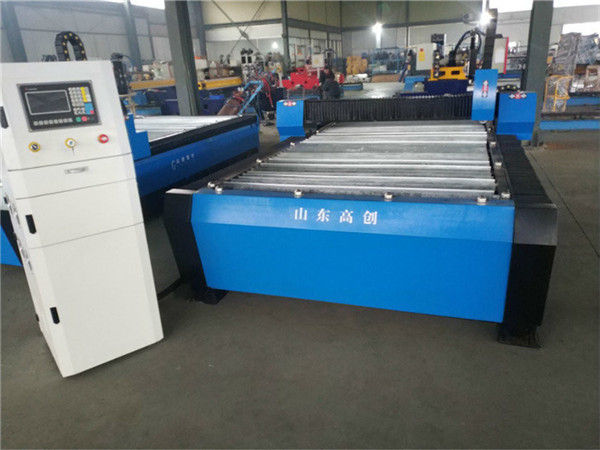

Jinan CE Beruf 1325 kleine CNC-Plasma-Schneidemaschine
Basisinformation


Customized: Customized
Artikelzustand: Neu
Color: Customized
Arbeitsbereich: 1300 * 2500mm
Idling Speed: 15.000mm/Min
Working Speed: 10.000mm/Min
Precision: 0.07mm
Positioning Accuracy: 0.02mm
Machine Structure: Channel Steel Lathe Bed,Serrated Table

Produktbeschreibung


Product Overview
Plasma series is mainly applied to non-insulating material cutting,According to material thickness,power source of different current are correspondent choices to best fit precision request.

Eigenschaften
1.Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2.Indline design under table surface makes finshed parts and scrap slide down to both side along,convenient and safe for operator.
3.DSP-hand-held control system dedicated for plasma machine,supports file reading from U disk or downloading from computer,providing high independence and great convenience duringoperation.
4.Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.
5.High sensitivity THC(Torch Height Controller)is optional for auto adjustment to cutting distance and cutting precison.
6. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option: Square rail)
7. Excellent cutting 3D illuminated letters for advertising and channel letters on metal surface board.
8. Arc voltage height controller
9. Small cutting gap, no residua.
10. Plasma Cutter working together with other advertising machines, such as CNC Router etc, improving working efficiency
11. Superior plasma power, Taiwan linesr rail, ensure vertical section, more percision.
12. US. Haibao power and domestic Huanyuan power
13. Drive system uses a system of Beijing Stuart

Technische Spezifikation


ModellQL-1325 Plasma-Schneidemaschine
Arbeitsgröße1300x2500mm
Positioniergenauigkeit wiederholen± 0,05 mm
Fahrgeschwindigkeit0-24000 U / min
Schneidgeschwindigkeit100-8000mm/min
BetriebsspannungAC380 / 50Hz
GetriebemodellZahnstangenantrieb
Übertragungssystemhigh-precision, zero clearance increased linear guide + rack
SchneidsystemBeijing Stuart Schneidsystem (Englisch)
TreiberRay-Plug-Laufwerke 860
(Sino-us joint venture large drives
Plasma-StromversorgungImported US Haibao or Domestic Huayuan
Schnittstärke6-25mm
Cutting typePlasma/oxy-acetylene or propane
Eingangsspannung3 phase, 220v/380v±10%
Mode of file transferUSB-Schnittstelle
Energieversorgung65A US Haibao power supply
WegweiserImportierte Vierkantschiene
TischplatteStahlklinge Sägezahn Mesa
Straight line positioning precision± 0,2 mm / 10 m
Straight line repeat precision±0.3mm/10m
Environmental temperature-5~45°C
Feuchtigkeit<90% No concreting
